Product Detail

water electrolysis technology used with GC. 0--300ml/min flow rate. supply three years quality gurantee for inside cells.

Character:

1. Easy operation. Safety and stable. Once add KOH, normal daily only need add distilled water, just power on, H2 produced on demand ( could work with several GC)

2. Gas system use stainless steel pipe ( electrolytic polishing, ultrasonic cleaning);

Have over pressure protection. Two level purifications.

3. Special design for anti alkali return. Guarantee no alkali return.

4. Tube type electrolysis cell, use imported noble metal for the cell, electrolysis efficiency is high,

and cell temperature is stable, electrolysis cell lifetime is long.

5. Output flow rate is stable, purity not decrease, could use none stop.

Technical Data

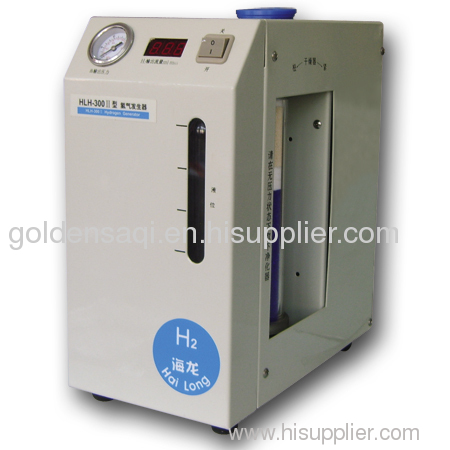

Model No	HLH-300II
Hydrogen Output Purity	99.999%
Hydrogen Output Flow	0--300ml/min
Hydrogen Output Pressure	0--0.4MPa
Pressure Stability	<0.0001MPa
Working Power Supply	220V±10%, 50--60Hz
Maximum Power Consumption	150W
Working Condition	10--40 centigrade. Relative humidity<85%
Size	320180350mm
Weight	12kgs

Model No	HLH-500II
Hydrogen Output Purity	99.999%
Hydrogen Output Flow	0--500ml/min
Hydrogen Output Pressure	0--0.4MPa
Pressure Stability	<0.0001MPa
Working Power Supply	220V±10%, 50--60Hz
Maximum Power Consumption	200W
Working Condition	10--40 centigrade. Relative humidity<85%
Size	320180350mm
Weight	12kgs
